LED Display Modules

  • Indoor Display Modules

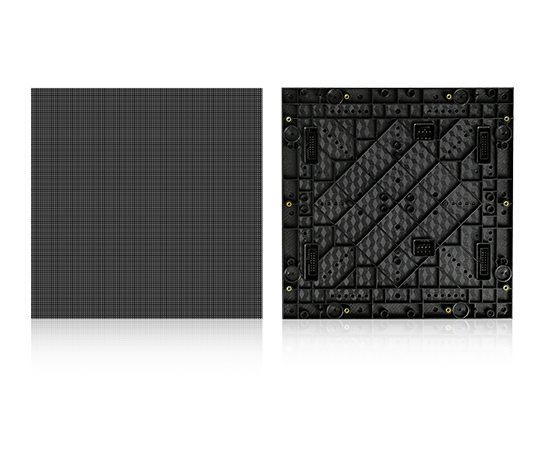

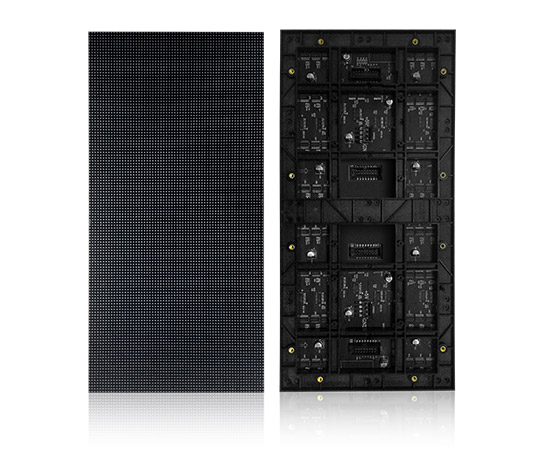

    Explorerled LED Display

    Fine Pixel Pitch LED Display module:

    Indoor professional solution

    • Pixel pitch: 1.579mm
    • Resolution: 451,250
    • Best view distance: 1.6m-20m
    P1.579
    Explorerled LED Display

    Fine pixel pitch LED display module:

    Indoor professional solution

    • Pixel pitch: 1.667mm
    • Resolution: 360,000
    • Best view distance: 1.7m-20m

    P1.667

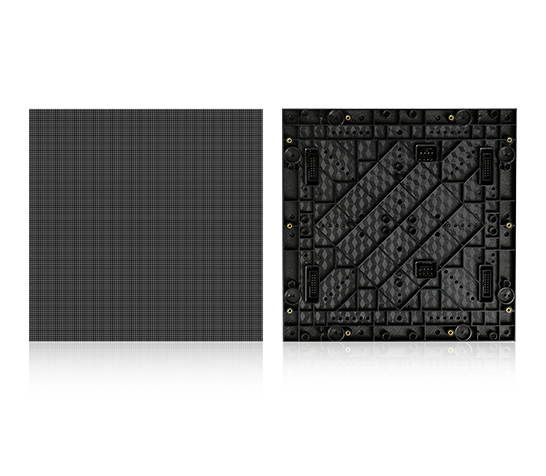

    Explorerled LED Display

    Fine Pixel Pitch LED Display:

    Indoor professional solution

    • Pixel pitch: 1.875
    • Resolution: 284444
    • Best view distance: 2m-20m

    P1.875

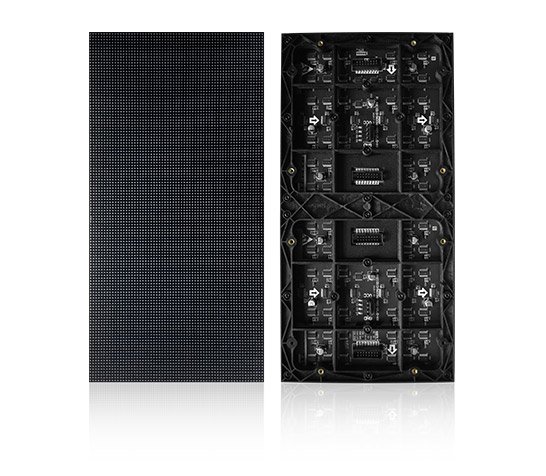

    Explorerled LED Display

    UHD LED Display:

    Indoor professional solution

    • Pixel pitch: 1.904mm
    • Resolution: 275,625dots/sqm
    • Best view distance: 2m-20m

    P1.904

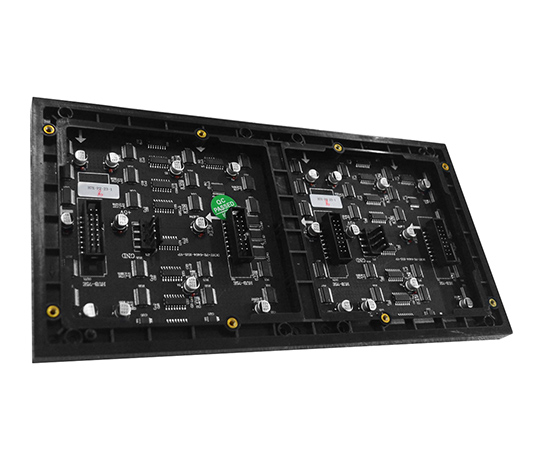

    P2 indoor led display module

    Indoor LED display module:

    • Pixel pitch: 2mm
    • Resolution: 250,000dots/sqm
    • Module size: 256×128mm
    • Best view distance: 2m-20m
    P2

  • Outdoor Display Modules

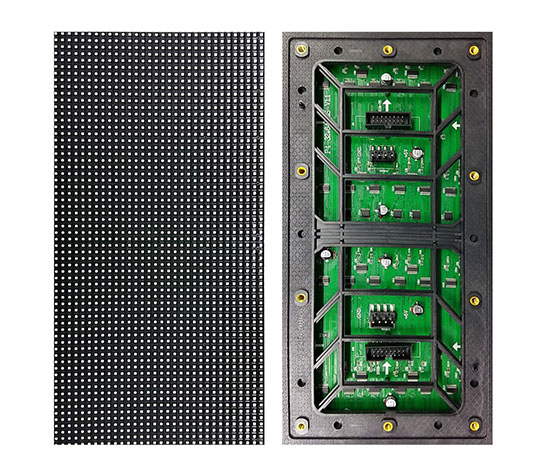

    Explorerled

    Outdoor LED Display Module:

    • Pixel pitch: 4mm
    • Resolution: 62,500dots/sqm
    • Module size: 256×128
    • Best view distance: 4m-50m
    P4

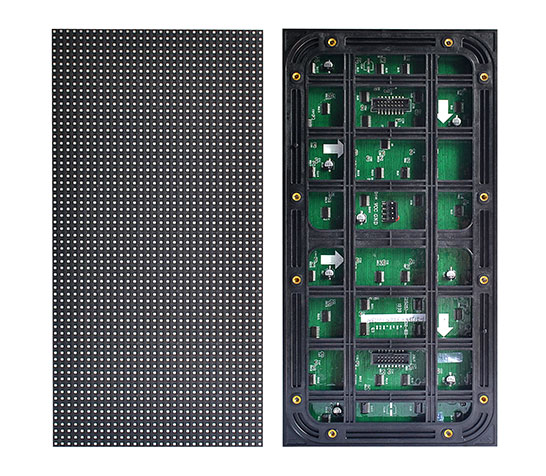

    P5 Outdoor LED Display Module

    Outdoor LED Display Module:

    • Pixel pitch: 5mm
    • Resolution: 40,000dots/sqm
    • Best view distance: 5m-50m
    P5
    Explorerled LED Display

    LED Display Module:

    Outdoor professional solution

    • Pixel pitch: 6.67mm
    • Resolution: 22,500dots/sqm
    • Best view distance: 7m-50m

    P6.67

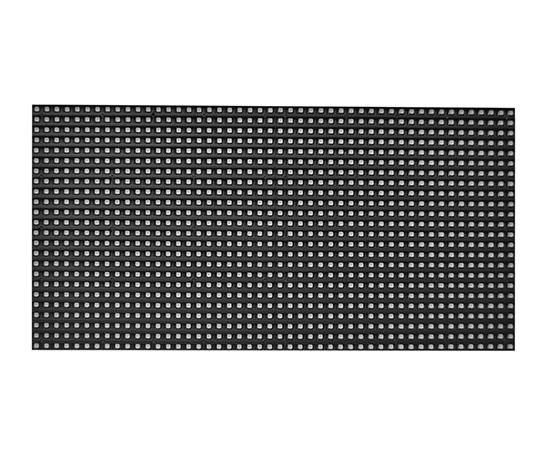

    Explorerled LED Display

    LED Display Module:

    Outdoor professional solution

    • Pixel pitch: 8mm
    • Resolution: 15,625dots/sqm
    • Best view distance: 8m-50m

    P8

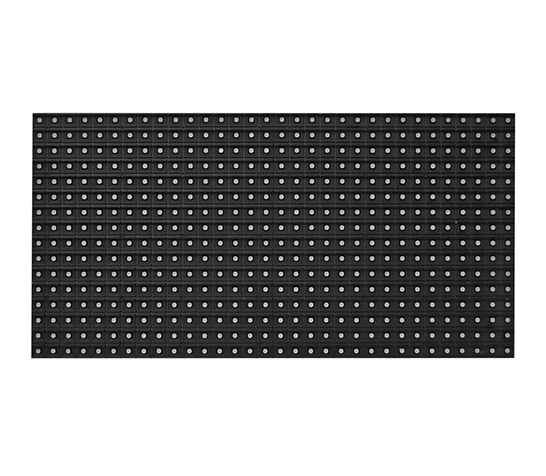

    Explorerled LED Display

    LED Display Module:

    outdoor professional solution

    • Pixel pitch: 10mm
    • Resolution: 10,000dots/sqm
    • Best view distance: 10m-50m

    P10

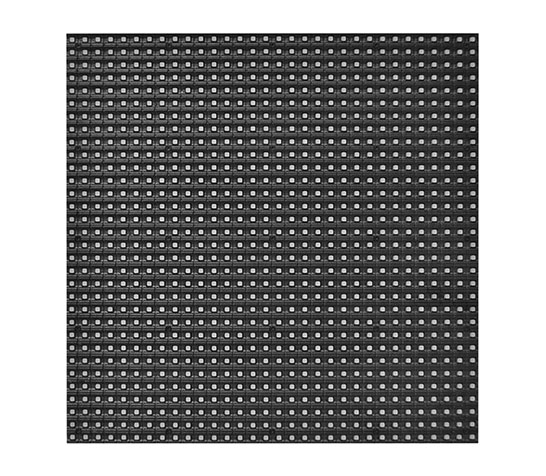

    Explorerled LED Display

    Outdoor LED Display Module:

    • Pixel pitch: 6mm
    • Resolution: 27,777dots/sqm
    • Best view distance: 6m-50m

    P6

Technical Specifications

Technical Specifications P1.25 P1.48 P1.579 P1.667 P1.875 P1.904 P2 P2.5 P3 P4 P5 P4 P5 P6 P6.67 P8 P10
Pixel Pitch 1.25mm 1.48mm 1.579mm 1.667mm 1.875mm 1.904mm 2mm 2.5mm 3mm 4mm 5mm 4mm 5mm 6mm 6.67mm 8mm 10mm
Pixel Configuration SMD1010 SMD1010 SMD1212 SMD1010 SMD1515 SMD 1515 SMD1515 SMD2121 SMD2121 SMD2121 SMD2121 SMD1921 SMD2727 SMD2727/SMD3535 SMD3535 SMD3535 SMD3535
Module Size 320*160mm 320*160mm 240*240mm 320*160mm 240*240mm 320*160mm 256*128mm 160*160mm 192*192mm 256*128mm 320*160mm 256*128mm 320*160mm 192*192mm 360*160mm 256*128mm 320*160mm
Module Resolution 256*128dots 216*108dots 152*152dots 192*96dots 128*128dots 168*84dots 128*64dots 64*64dots 64*64dots 64*32dots 64*32dots 64*32dots 64*32dots 32*32dots 48*24dots 32*16dots 32*16dots
Pixel Resolution 640,000dots/m2 455,625dots/m2 401,111dots/m2 360,000dots/m2 284,444dots/m2 275,625dots/m2 250,000dots/m2 160,000dots/m2 111,111dots/m2 62,500dots/m2 40,000dots/m2 625,000dots/m2 40,000dots/m2 27,777dots/m2 22,500dots/m2 15,625dots/m2 10,000dots/m2
Module Weight 0.425kg 0.425kg 0.578kg 0.425kg 0.425kg 0.578kg 0.236kg 0.232kg 0.31kg 0.242kg 0.3kg 0.43kg 0.5kg 0.369kg 0.546kg 0.343kg 0.51kg
The Optimal Viewing Distance 1-50m 1.5-50m 1.6-50m 2-50m 2-50m 2-50m 2.5-50m 3-50m 4-100m 5-100m 3-50m 4-100m 5-100m 6-100m 7-100m 8-100m 10-100m
Brightness 600-800cd/m2 600-800cd/m2 600-800cd/m2 600-800cd/m2 600-800cd/m2 600-800cd/m2 600-800cd/m2 600-800cd/m2 600-800cd/m2 600-800cd/m2 600-800cd/m2 5000-6000cd/m2 5500-6000cd/m2 5500-6000cd/m2 5800-6000cd/m2 5500-8500cd/m2 6000-10000cd/m2
View Angle 160°(W) 120°(H) 160°(W) 120°(H) 160°(W) 120°(H) 160°(W) 120°(H) 160°(W) 120°(H) 160°(W) 120°(H) 160°(W) 120°(H) 160°(W) 120°(H) 160°(W) 120°(H) 160°(W) 120°(H) 160°(W) 120°(H) 160°(W) 120°(H) 160°(W) 120°(H) 140°(W) 120°(H) 140°(W) 120°(H) 140°(W) 120°(H) 140°(W) 120°(H)
Refresh Rate ≥3，840HZ ≥3，840HZ ≥3，840HZ ≥3，840HZ ≥3，840HZ ≥3，840HZ ≥3，840HZ ≥3，840HZ ≥3，840HZ ≥1，920HZ ≥1，920HZ ≥1，920HZ ≥1，920HZ ≥1，920HZ ≥1，920HZ ≥1，920HZ ≥1，920HZ
Input Voltage AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10%
Max.power Consumption ≤720W/m² ≤720W/m² ≤720W/m² ≤690W/m² ≤600W/m² ≤600W/m² ≤700W/m² ≤710W/m² ≤620W/m² ≤700W/m² ≤500W/m² ≤900W/m² ≤780W/m² ≤950W/m² ≤780W/m² ≤780W/m² ≤880W/m²
Avg. Power Consumption 240W/m² 240W/m² 240W/m² 230W/m² 200W/m² 200W/m² 280W/m² 280W/m² 260W/m² 280W/m² 200W/m² 360W/m² 320W/m² 380W/m² 320W/m² 320W/m² 350W/m²
Working Temperature -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C
Storage Temperature -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C
Working Humidity 10%-95% 10%-95% 10%-95% 10%-95% 10%-95% 10%-95% 10%-75% 10%-75% 10%-95% 10%-95% 10%-95% 10%-95% 10%-95% 10%-95% 10%-75% 10%-75% 10%-95%
Lifespan 100,000hours 100,000hours 100,000hours 100,000hours 100,000hours 100,000hours 100,000hours 100,000hours 100,000hours 100,000hours 100,000hours 100,000hours 100,000hours 100,000hours 100,000hours 100,000hours 100,000hours
Maintenance Mode Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear Rear Rear Rear Rear Rear Front/Rear
Technical Specifications P1.25 P1.48 P1.579 P1.667 P1.875 P1.904 P2 P2.5 P3 P4 P5 P4 P5 P6 P6.67 P8 P10
Pixel Pitch 1.25mm 1.48mm 1.579mm 1.667mm 1.875mm 1.904mm 2mm 2.5mm 3mm 4mm 5mm 4mm 5mm 6mm 6.67mm 8mm 10mm
Pixel Configuration SMD1010 SMD1010 SMD1212 SMD1010 SMD1515 SMD 1515 SMD1515 SMD2121 SMD2121 SMD2121 SMD2121 SMD1921 SMD2727 SMD2727/SMD3535 SMD3535 SMD3535 SMD3535
Module Size 320*160mm 320*160mm 240*240mm 320*160mm 240*240mm 320*160mm 256*128mm 160*160mm 192*192mm 256*128mm 320*160mm 256*128mm 320*160mm 192*192mm 360*160mm 256*128mm 320*160mm
Module Resolution 256*128dots 216*108dots 152*152dots 192*96dots 128*128dots 168*84dots 128*64dots 64*64dots 64*64dots 64*32dots 64*32dots 64*32dots 64*32dots 32*32dots 48*24dots 32*16dots 32*16dots
Pixel Resolution 640,000dots/m2 455,625dots/m2 401,111dots/m2 360,000dots/m2 284,444dots/m2 275,625dots/m2 250,000dots/m2 160,000dots/m2 111,111dots/m2 62,500dots/m2 40,000dots/m2 625,000dots/m2 40,000dots/m2 27,777dots/m2 22,500dots/m2 15,625dots/m2 10,000dots/m2
Module Weight 0.425kg 0.425kg 0.578kg 0.425kg 0.425kg 0.578kg 0.236kg 0.232kg 0.31kg 0.242kg 0.3kg 0.43kg 0.5kg 0.369kg 0.546kg 0.343kg 0.51kg
The Optimal Viewing Distance 1-50m 1.5-50m 1.6-50m 2-50m 2-50m 2-50m 2.5-50m 3-50m 4-100m 5-100m 3-50m 4-100m 5-100m 6-100m 7-100m 8-100m 10-100m
Brightness 600-800cd/m2 600-800cd/m2 600-800cd/m2 600-800cd/m2 600-800cd/m2 600-800cd/m2 600-800cd/m2 600-800cd/m2 600-800cd/m2 600-800cd/m2 600-800cd/m2 5000-6000cd/m2 5500-6000cd/m2 5500-6000cd/m2 5800-6000cd/m2 5500-8500cd/m2 6000-10000cd/m2
View Angle 160°(W) 120°(H) 160°(W) 120°(H) 160°(W) 120°(H) 160°(W) 120°(H) 160°(W) 120°(H) 160°(W) 120°(H) 160°(W) 120°(H) 160°(W) 120°(H) 160°(W) 120°(H) 160°(W) 120°(H) 160°(W) 120°(H) 160°(W) 120°(H) 160°(W) 120°(H) 140°(W) 120°(H) 140°(W) 120°(H) 140°(W) 120°(H) 140°(W) 120°(H)
Refresh Rate ≥3，840HZ ≥3，840HZ ≥3，840HZ ≥3，840HZ ≥3，840HZ ≥3，840HZ ≥3，840HZ ≥3，840HZ ≥3，840HZ ≥1，920HZ ≥1，920HZ ≥1，920HZ ≥1，920HZ ≥1，920HZ ≥1，920HZ ≥1，920HZ ≥1，920HZ
Input Voltage AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10% AC110v-220V±10%
Max.power Consumption ≤720W/m² ≤720W/m² ≤720W/m² ≤690W/m² ≤600W/m² ≤600W/m² ≤700W/m² ≤710W/m² ≤620W/m² ≤700W/m² ≤500W/m² ≤900W/m² ≤780W/m² ≤950W/m² ≤780W/m² ≤780W/m² ≤880W/m²
Avg. Power Consumption 240W/m² 240W/m² 240W/m² 230W/m² 200W/m² 200W/m² 280W/m² 280W/m² 260W/m² 280W/m² 200W/m² 360W/m² 320W/m² 380W/m² 320W/m² 320W/m² 350W/m²
Working Temperature -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C
Storage Temperature -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C -30°C~+60°C
Working Humidity 10%-95% 10%-95% 10%-95% 10%-95% 10%-95% 10%-95% 10%-75% 10%-75% 10%-95% 10%-95% 10%-95% 10%-95% 10%-95% 10%-95% 10%-75% 10%-75% 10%-95%
Lifespan 100,000hours 100,000hours 100,000hours 100,000hours 100,000hours 100,000hours 100,000hours 100,000hours 100,000hours 100,000hours 100,000hours 100,000hours 100,000hours 100,000hours 100,000hours 100,000hours 100,000hours
Maintenance Mode Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear Rear Rear Rear Rear Rear Front/Rear
