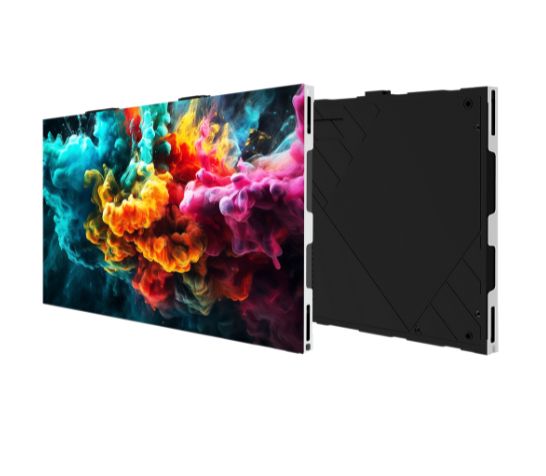

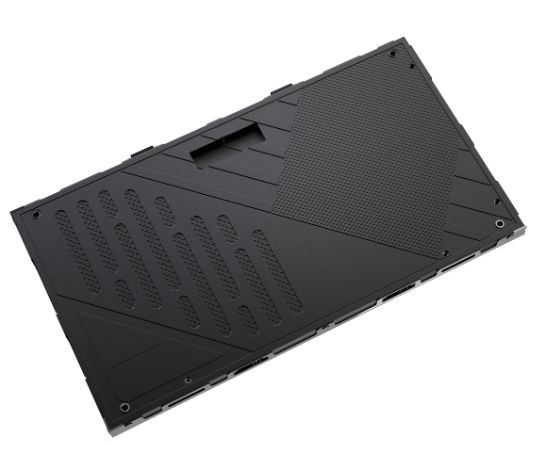

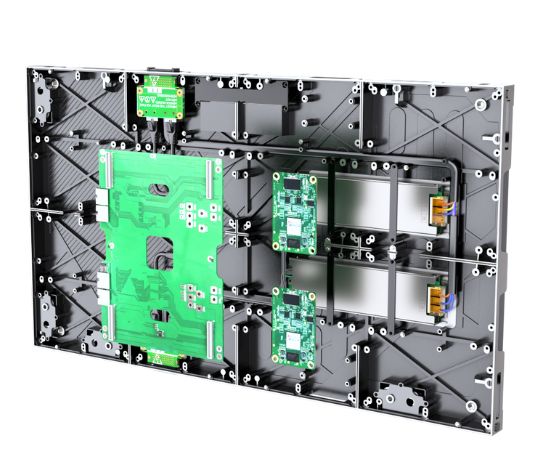

UHD LED Display
The UHD LED display screen provides wider viewing angles and perfect viewing experience, presenting crystal-clear, detailed images with smooth motion.
Pixel Pitch: 0.9375mm / 1.25mm / 1.56mm / 1.87mm
Get A Quotation
The UHD LED display screen provides wider viewing angles and perfect viewing experience, presenting crystal-clear, detailed images with smooth motion.
Pixel Pitch: 0.9375mm / 1.25mm / 1.56mm / 1.87mm

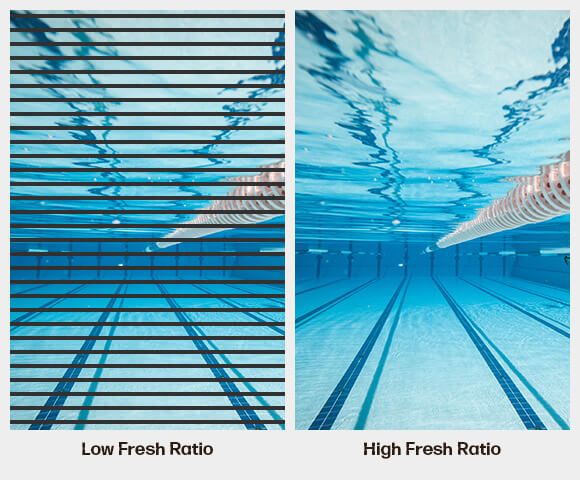

Get A QuotationYour advertisement will efficiently reach potential customers as our LED display screen, boasting the highest refresh ratio in the market, will deliver the clearest image and significantly lower the frequency of flickering.
The high refresh ratio effectively reproduces the display, especially when it is filmed with a high-speed camera.
Explorerled sets the aspect ratio of the screen at 16:9, which perfectly matches the golden ratio of the human viewing range. By doing so, the audience will have the best visual feeling.
Moreover, the aspect ratio of 16:9 is frequently used for television production due to its lower cost, and it is also the standard broadcast format for most TV channels in the world. So you can use the TV video sources directly on our LED display.
For indoor LED display screens, the contrast is vital to the clarity of screens, having an important impact on image effect.
With a higher contrast ratio, an LED display will positively deliver a vivid image of more layerings, sending the content message to audiences directly and effectively with more beautiful color effects.
To better convey your advertisement or message, Explorerled has adopted dark mask processing technology to improve the contrast ratio greatly.

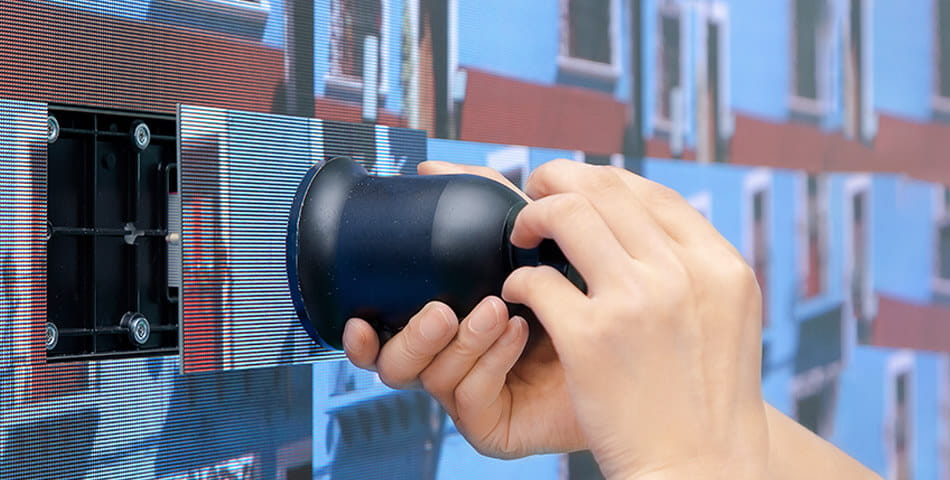

With optional modes of installation, such as semi-auto magnetic column adsorption and tab fixed installation mode, our LED display screens can be used on more occasions. It will greatly improve the applicability of products.
If you have unique installation requirements for special cases, please contact us to get professional customized service.

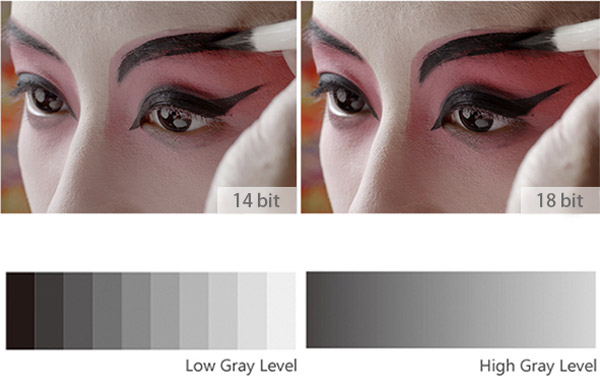

With high greyscale, the display still has perfect performance even in low brightness. It will show the image or video in clear and vibrant colors, blurring no details.
After years of improvements, its stability already has time on its side. Your customer will definitely like it for its sound performance.

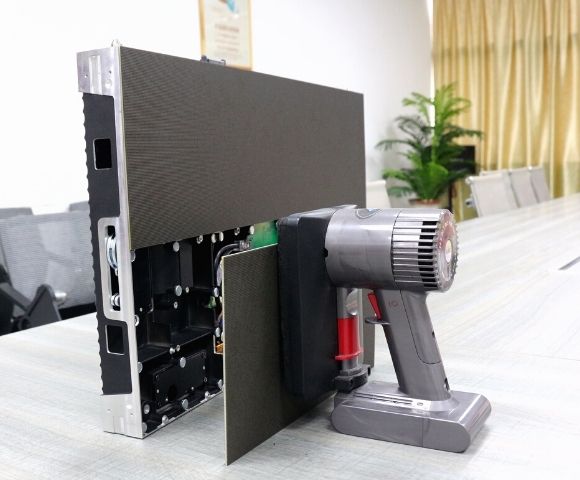

As our indoor LED display screens are widely used with different installation methods, we adopt both front and rear maintenance to make the replacement of modules easier and cost-saving.
For example, the display screen modules fixed in a narrow space can be maintained from the front.
Our thoughtful design is aimed to improve your customer’s user experience and save them space and time.
| Technical Specifications | P0.9375 | P1.25 | P1.56 | P1.875 |
| Pixel Pitch | 0.9375mm | 1.25mm | 1.56mm | 1.875mm |
| Pixel Configuration | Mini 4 in 1 | SMD1010 | SMD1010 | SMD1010/SMD1515 |
| Module Size | 150*168.75mm | 150*337.5mm | 150*168.75mm | 150*168.75mm |
| Module Resolution | 160*180dots | 120*270dots | 96*108dots | 80*90dots |
| Pixel Resolution | 1,137,800dots/m2 | 640,000dots/m2 | 409,600dots/m2 | 284,444dots/m2 |
| Cabinet Size | 600*337.5*48mm | 600*337.5*48mm | 600*337.5*48mm | 600*337.5*48mm |
| Cabinet Weight | 7.0kg | 7.0kg | 7.0kg | 7.0kg |
| Average Comfortable Viewing Distance | 1m | 1.25m | 1.56m | 1.87m |
| Brightness | 400-600cd/m2 | 400-600cd/m2 | 400-800cd/m2 | 400-800cd/m2 |
| View Angle | 160°(W) 160°(H) | 160°(W) 160°(H) | 160°(W) 160°(H) | 160°(W) 160°(H) |
| Refresh Rate | ≥3，840HZ | ≥3，840HZ | ≥3，840HZ | ≥3，840HZ |
| Input Voltage | AC90v-264V±10% | AC90v-264V±10% | AC90v-264V±10% | AC90v-264V±10% |
| Max.power Consumption | ≤800W/m² | ≤800W/m² | ≤800W/m² | ≤800W/m² |
| Avg. Power Consumption | 100-200W/m² | 100-200W/m² | 100-200W/m² | 100-200W/m² |
| Working Temperature | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C |
| Storage Temperature | -30°C~+60°C | -30°C~+60°C | -30°C~+60°C | -30°C~+60°C |
| Working Humidity | 10%-75% | 10%-75% | 10%-75% | 10%-95% |
| Lifespan | 100,000hours | 100,000hours | 100,000hours | 100,000hours |
| Maintenance Mode | Front | Front | Front | Front |
| Technical Specifications | P0.9375 | P1.25 | P1.56 | P1.875 |
| Pixel Pitch | 0.9375mm | 1.25mm | 1.56mm | 1.875mm |
| Pixel Configuration | Mini 4 in 1 | SMD1010 | SMD1010 | SMD1010/SMD1515 |
| Module Size | 150*168.75mm | 150*337.5mm | 150*168.75mm | 150*168.75mm |
| Module Resolution | 160*180dots | 120*270dots | 96*108dots | 80*90dots |
| Pixel Resolution | 1,137,800dots/m2 | 640,000dots/m2 | 409,600dots/m2 | 284,444dots/m2 |
| Cabinet Size | 600*337.5*48mm | 600*337.5*48mm | 600*337.5*48mm | 600*337.5*48mm |
| Cabinet Weight | 7.0kg | 7.0kg | 7.0kg | 7.0kg |
| Average Comfortable Viewing Distance | 1m | 1.25m | 1.56m | 1.87m |
| Brightness | 400-600cd/m2 | 400-600cd/m2 | 400-800cd/m2 | 400-800cd/m2 |
| View Angle | 160°(W) 160°(H) | 160°(W) 160°(H) | 160°(W) 160°(H) | 160°(W) 160°(H) |
| Refresh Rate | ≥3，840HZ | ≥3，840HZ | ≥3，840HZ | ≥3，840HZ |
| Input Voltage | AC90v-264V±10% | AC90v-264V±10% | AC90v-264V±10% | AC90v-264V±10% |
| Max.power Consumption | ≤800W/m² | ≤800W/m² | ≤800W/m² | ≤800W/m² |
| Avg. Power Consumption | 100-200W/m² | 100-200W/m² | 100-200W/m² | 100-200W/m² |
| Working Temperature | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C |
| Storage Temperature | -30°C~+60°C | -30°C~+60°C | -30°C~+60°C | -30°C~+60°C |
| Working Humidity | 10%-75% | 10%-75% | 10%-75% | 10%-95% |
| Lifespan | 100,000hours | 100,000hours | 100,000hours | 100,000hours |
| Maintenance Mode | Front | Front | Front | Front |
